I2C_component.c File Reference

Base I2C component. More...

#include "WDG_ex.h"
#include "I2C_component.h"

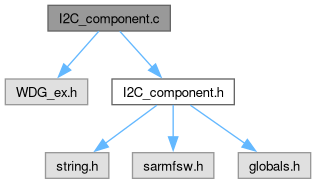

Include dependency graph for I2C_component.c:

Functions
void	I2C_slave_init (I2C_slave_t *const slave, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress, const uint32_t timeout)
	I2C Slave device initialization.
void	I2C_set_slave_instance (I2C_slave_t *const slave, I2C_HandleTypeDef *const hi2c)
	I2C Slave device HAL instance change.
void	I2C_set_slave_address (I2C_slave_t *const slave, const uint16_t devAddress)
	I2C Slave device address change.
void	I2C_Watchdog_Refresh (void)
	I2C Watchdog refresh callback.

Detailed Description

Base I2C component.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

Warning

Components with a xxx_proc file can access I2C_slave_t instance through CPNT->cfg.slave_inst. Please keep in mind some components are somewhat custom and needs to be accesses through CPNT->cfg.slave_inst_xxx instead if needed.

Function Documentation

I2C_set_slave_address()

void I2C_set_slave_address	(	I2C_slave_t *const	slave,
		const uint16_t	devAddress )

I2C Slave device address change.

Parameters

[in,out]	slave	- pointer to I2C slave instance
[in]	devAddress	- Device Address

I2C_set_slave_instance()

void I2C_set_slave_instance	(	I2C_slave_t *const	slave,
		I2C_HandleTypeDef *const	hi2c )

I2C Slave device HAL instance change.

Parameters

[in,out]	slave	- pointer to I2C slave instance
[in]	hi2c	- pointer to HAL I2C instance

I2C_slave_init()

void I2C_slave_init	(	I2C_slave_t *const	slave,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress,
		const uint32_t	timeout )

I2C Slave device initialization.

Parameters

[in,out]	slave	- pointer to I2C slave instance to initialize
[in]	hi2c	- pointer to HAL I2C instance
[in]	devAddress	- Device Address
[in]	timeout	- Transaction timeout

I2C_Watchdog_Refresh()

void I2C_Watchdog_Refresh

(

void

)

I2C Watchdog refresh callback.

Weak Functions

Function declared as weak, can be customly implemented in user code is specific actions needs to be taken (IWDG refreshed by default)

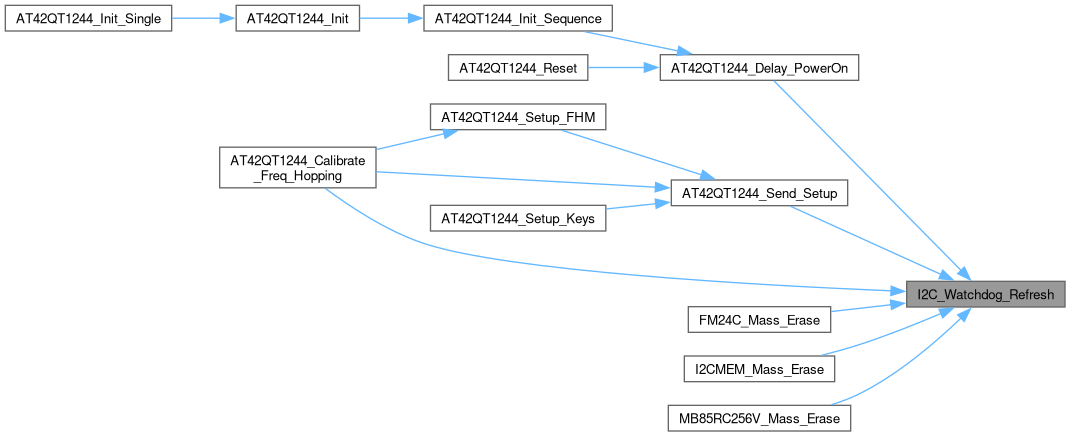

Here is the caller graph for this function:
