NCA9595.h File Reference

NCA9595 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "NCA9595_proc.h"
#include "NCA9595_ex.h"

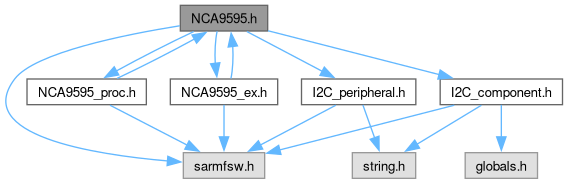

Include dependency graph for NCA9595.h:

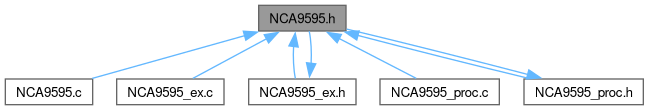

This graph shows which files directly or indirectly include this file:

Data Structures
union	uNCA9595_REG__IN
	Union for Input register pair of NCA9595. More...
union	uNCA9595_REG__OUT
	Union for Output register pair of NCA9595. More...
union	uNCA9595_REG__CFG
	Union for Config register pair of NCA9595. More...
union	uNCA9595_REG__POL
	Union for Polarity inversion register pair of NCA9595. More...
union	uNCA9595_REG__PUP
	Union for PullUp register pair of NCA9595. More...

Macros
#define	I2C_NCA9595_NB   1U
	Number of NCA9595 peripherals.
#define	NCA9595_ADDR   0x20U
	NCA9595 address.
#define	NCA9595_BASE_ADDR   NCA9595_ADDR
	NCA9595 Base address.

Enumerations
enum	NCA9595_reg {   NCA9595__InputPort0 = 0U , NCA9595__InputPort1 , NCA9595__OutputPort0 , NCA9595__OutputPort1 ,   NCA9595__PolarityPort0 , NCA9595__PolarityPort1 , NCA9595__ConfigPort0 , NCA9595__ConfigPort1 ,   NCA9595__PullUpConfigPort0 , NCA9595__PullUpConfigPort1 }
	Register map enum of NCA9595. More...
enum	NCA9595_wreg {   NCA9595__InputPorts = NCA9595__InputPort0 , NCA9595__OutputPorts = NCA9595__OutputPort0 , NCA9595__PolarityPorts = NCA9595__PolarityPort0 , NCA9595__ConfigPorts = NCA9595__ConfigPort0 ,   NCA9595__PullUpConfigPorts = NCA9595__PullUpConfigPort0 }
	Register map enum of NCA9595. More...
enum	NCA9595_Config { NCA9595__Cfg_Output = 0U , NCA9595__Cfg_Input }
	Configuration register values for NCA9595. More...
enum	NCA9595_Polarity { NCA9595__Pol_Direct = 0U , NCA9595__Pol_Invert }
	Polarity inversion register values for NCA9595. More...
enum	NCA9595_PullUp { NCA9595__PUp_Disable = 0U , NCA9595__PUp_Enable }
	Pull-Up configuration register values for NCA9595. More...

Functions
FctERR	NCA9595_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for NCA9595 peripheral.
FctERR	NCA9595_Init_Single (void)
	Initialization for NCA9595 peripheral.
FctERR	NCA9595_Write_Word (I2C_slave_t *const pSlave, const uint16_t *data, const uint16_t addr)
	I2C Write function for NCA9595.
FctERR	NCA9595_Read_Word (I2C_slave_t *const pSlave, uint16_t *data, const uint16_t addr)
	I2C Read function for NCA9595.

Detailed Description

NCA9595 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

NCA9595: Low-voltage 16-bit I²C and SMBus I/O expander

Macro Definition Documentation

I2C_NCA9595_NB

#define I2C_NCA9595_NB   1U

Number of NCA9595 peripherals.

Note

Define I2C_NCA9595_NB to enable multiple peripherals of this type

NCA9595_ADDR

#define NCA9595_ADDR   0x20U

NCA9595 address.

NCA9595_BASE_ADDR

#define NCA9595_BASE_ADDR   NCA9595_ADDR

NCA9595 Base address.

Note

Define NCA9595_BASE_ADDR to change default device base address

Enumeration Type Documentation

NCA9595_Config

enum NCA9595_Config

Configuration register values for NCA9595.

Enumerator
NCA9595__Cfg_Output	corresponding port pin is enabled as an output
NCA9595__Cfg_Input	corresponding port pin is enabled as a high-impedance input

NCA9595_Polarity

enum NCA9595_Polarity

Polarity inversion register values for NCA9595.

Enumerator
NCA9595__Pol_Direct	corresponding port pin’s polarity is retained
NCA9595__Pol_Invert	corresponding port pin’s polarity is inverted in the Input register

NCA9595_PullUp

enum NCA9595_PullUp

Pull-Up configuration register values for NCA9595.

Enumerator
NCA9595__PUp_Disable	corresponding port pull-up resistors are disabled
NCA9595__PUp_Enable	corresponding port pull-up resistors are enabled

NCA9595_reg

enum NCA9595_reg

Register map enum of NCA9595.

Note

Shouldn't be used directly (use NCA9595_wreg instead)

Enumerator
NCA9595__InputPort0	Input port 0.
NCA9595__InputPort1	Input port 1.
NCA9595__OutputPort0	Output port 0.
NCA9595__OutputPort1	Output port 1.
NCA9595__PolarityPort0	Polarity inversion port 0.
NCA9595__PolarityPort1	Polarity inversion port 1.
NCA9595__ConfigPort0	Configuration port 0.
NCA9595__ConfigPort1	Configuration port 1.
NCA9595__PullUpConfigPort0	Configuration pull-up port 0.
NCA9595__PullUpConfigPort1	Configuration pull-up port 1.

NCA9595_wreg

enum NCA9595_wreg

Register map enum of NCA9595.

Enumerator
NCA9595__InputPorts	Input ports.
NCA9595__OutputPorts	Output ports.
NCA9595__PolarityPorts	Polarity inversion ports.
NCA9595__ConfigPorts	Configuration ports.
NCA9595__PullUpConfigPorts	Configuration pull-up port 0.

Function Documentation

NCA9595_Init()

FctERR NCA9595_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for NCA9595 peripheral.

Parameters

[in]	idx	- NCA9595 index
[in]	hi2c	- pointer to NCA9595 I2C instance
[in]	devAddress	- NCA9595 device address

Returns

FctERR - error code

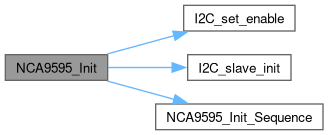

Here is the call graph for this function:

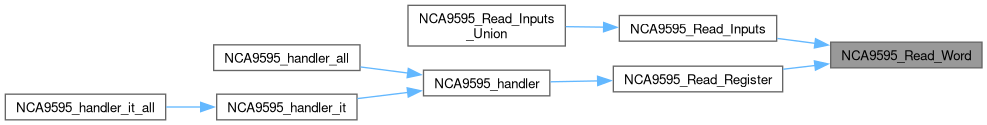

Here is the caller graph for this function:

NCA9595_Init_Single()

FctERR NCA9595_Init_Single

(

void

)

Initialization for NCA9595 peripheral.

Warning

In case multiple devices (defined by I2C_NCA9595_NB > 1), you shall use NCA9595_Init instead

Returns

FctERR - error code

Here is the call graph for this function:

NCA9595_Read_Word()

FctERR NCA9595_Read_Word	(	I2C_slave_t *const	pSlave,
		uint16_t *	data,
		const uint16_t	addr )

I2C Read function for NCA9595.

Note

Reads 8bits register pair (address shall be even for little endian / odd for big endian)

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

NCA9595_Write_Word()

FctERR NCA9595_Write_Word	(	I2C_slave_t *const	pSlave,
		const uint16_t *	data,
		const uint16_t	addr )

I2C Write function for NCA9595.

Note

Writes 8bits register pair (address shall be even for little endian / odd for big endian)

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to

Returns

FctERR - error code

Here is the call graph for this function:

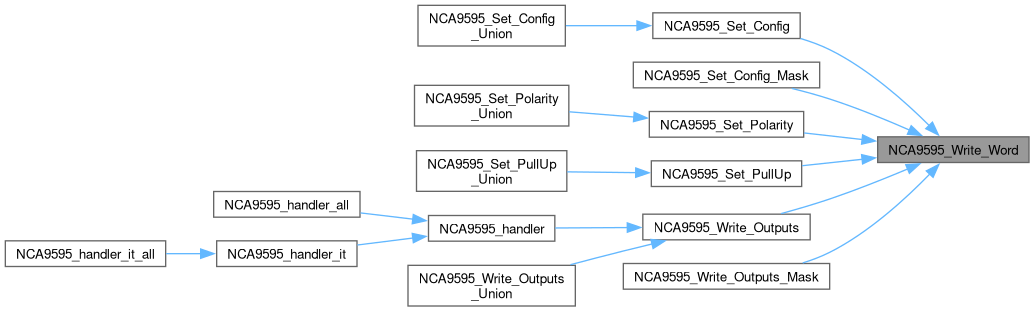

Here is the caller graph for this function:
