PCA9952 Driver extensions. More...

#include "sarmfsw.h"
#include "PCA9952.h"

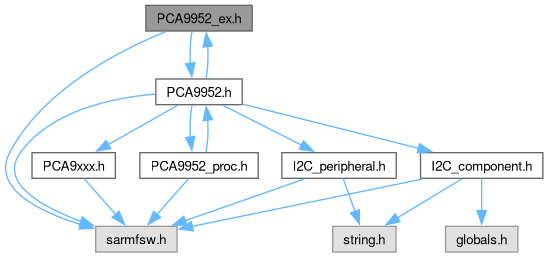

Include dependency graph for PCA9952_ex.h:

This graph shows which files directly or indirectly include this file:

Functions
FctERR	PCA9952_Set_MODE1 (PCA9952_t *const pCpnt, const uPCA9952_REG__MODE1 MODE1)
	Set MODE1 register.

FctERR	PCA9952_Set_MODE2 (PCA9952_t *const pCpnt, uPCA9952_REG__MODE2 MODE2)
	Set MODE2 register.

FctERR	PCA9952_Set_Auto_Increment (PCA9952_t *const pCpnt, const PCA962x_reg_inc inc)
	Set auto increment option for PCA9952 registers.

FctERR	PCA9952_Set_Latch (PCA9952_t *const pCpnt, const PCA96xx_latch latch)
	Set latch type for PCA9952 peripheral.

FctERR	PCA9952_Set_Mode_LED (PCA9952_t *const pCpnt, const PCA9xxx_chan chan, const PCA995x_ledout mode)
	Set PCA9952 peripheral LED mode.

FctERR	PCA9952_Set_Mode_LEDs (PCA9952_t *const pCpnt, const uint16_t chans, const PCA995x_ledout mode)
	Set PCA9952 peripheral multiple LEDs mode.

FctERR	PCA9952_Set_IREF (PCA9952_t *const pCpnt, const PCA9xxx_chan chan, const uint8_t iref)
	Set PCA9952 output gain control value.

FctERR	PCA9952_Set_IREFs (PCA9952_t *const pCpnt, const uint16_t chans, const uint8_t iref)
	Set PCA9952 output gain control value.

FctERR	PCA9952_Set_Offset (PCA9952_t *const pCpnt, const PCA9952_offset offset)
	Set PCA9952 peripheral delay between channels.

FctERR	PCA9952_ReadVals (PCA9952_t *const pCpnt, uint8_t pDuty[], const bool indexed, const PCA9xxx_chan start, const PCA9xxx_chan end)
	Read PWM duty cycle array of values of a PCA9952.

FctERR	PCA9952_ReadVals_Array (PCA9952_t *const pCpnt, uint8_t pDuty[], const PCA9xxx_chan start, const PCA9xxx_chan end)
	Read PWM duty cycle array of values of a PCA9952.

FctERR	PCA9952_ReadVals_IndexedArray (PCA9952_t *const pCpnt, uint8_t pDuty[], const PCA9xxx_chan start, const PCA9xxx_chan end)
	Read PWM duty cycle array of values of a PCA9952.

FctERR	PCA9952_ReadVals_All (PCA9952_t *const pCpnt, uint8_t pDuty[24])
	Read all PWM duty cycle array of values of a PCA9952 (for the 24 channels)

FctERR	PCA9952_ReadVal (PCA9952_t const pCpnt, const PCA9xxx_chan chan, uint8_t const pDuty)
	Read PWM duty cycle value of a PCA9952 channel.

FctERR	PCA9952_PutVals (PCA9952_t *const pCpnt, const uint8_t pDuty[], const bool indexed, const PCA9xxx_chan start, const PCA9xxx_chan end)
	Send PWM duty cycle array of values to apply on a PCA9952.

FctERR	PCA9952_PutVals_Array (PCA9952_t *const pCpnt, const uint8_t pDuty[], const PCA9xxx_chan start, const PCA9xxx_chan end)
	Send PWM duty cycle array of values to apply on a PCA9952.

FctERR	PCA9952_PutVals_IndexedArray (PCA9952_t *const pCpnt, const uint8_t pDuty[], const PCA9xxx_chan start, const PCA9xxx_chan end)
	Send PWM duty cycle array of values to apply on a PCA9952.

FctERR	PCA9952_PutVals_All (PCA9952_t *const pCpnt, const uint8_t pDuty[24])
	Send all PWM duty cycle array of values to apply on a PCA9952 (for the 24 channels)

FctERR	PCA9952_PutVal (PCA9952_t *const pCpnt, const PCA9xxx_chan chan, const uint8_t duty)
	Send PWM duty cycle value to apply on a PCA9952 channel.

FctERR	PCA9952_SetVal (PCA9952_t *const pCpnt, const PCA9xxx_chan chan)
	Send PWM Full ON value to apply on a PCA9952 channel.

FctERR	PCA9952_ClrVal (PCA9952_t *const pCpnt, const PCA9xxx_chan chan)
	Send PWM Full OFF value to apply on a PCA9952 channel.

FctERR	PCA9952_ReadEFLAGs (PCA9952_t const pCpnt, uPCA9952_REG__EFLAG const eflags)
	Read LEDs error flags.

FctERR	PCA9952_ReadRegister (PCA9952_t const pCpnt, const PCA9952_reg reg, uint8_t val)
	Read register from PCA9952.

void	PCA9952_RST_GPIO_Init (PCA9952_t const pCpnt, GPIO_TypeDef const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Reset GPIO pin init for PCA9952.

void	PCA9952_RST_GPIO_Set (PCA9952_t *const pCpnt, const bool state)
	Reset GPIO pin setter for PCA9952.

void	PCA9952_OE_GPIO_Init (PCA9952_t const pCpnt, GPIO_TypeDef const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Output Enable GPIO pin init for PCA9952.

void	PCA9952_OE_GPIO_Set (PCA9952_t *const pCpnt, const bool state)
	Output Enable GPIO pin setter for PCA9952.

Detailed Description

PCA9952 Driver extensions.

Author: SMFSW

Copyright: MIT (c) 2017-2026, SMFSW

PCA9952: 16-channel Fm+ I2C-bus 57 mA constant current LED driver

Function Documentation

◆ PCA9952_ClrVal()

FctERR PCA9952_ClrVal	(	PCA9952_t *const	pCpnt,
		const PCA9xxx_chan	chan )

Send PWM Full OFF value to apply on a PCA9952 channel.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	chan	- channel number

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9952_OE_GPIO_Init()

void PCA9952_OE_GPIO_Init	(	PCA9952_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Output Enable GPIO pin init for PCA9952.

Weak Functions: PCA9952 Output Enable GPIO pin init may be user implemented if needed

Warning: Only for PCA9952; No OE pin on PCA9955

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	GPIOx	- OE port
[in]	GPIO_Pin	- OE pin
[in]	GPIO_Active	OE pin active state

Here is the call graph for this function:

◆ PCA9952_OE_GPIO_Set()

void PCA9952_OE_GPIO_Set	(	PCA9952_t *const	pCpnt,
		const bool	state )

Output Enable GPIO pin setter for PCA9952.

Weak Functions: PCA9952 Output Enable GPIO pin setter may be user implemented if needed

Warning: Only for PCA9952; No OE pin on PCA9955

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	state	- state to write on OE pin (0: inactive, 1: active)

Here is the call graph for this function:

◆ PCA9952_PutVal()

FctERR PCA9952_PutVal	(	PCA9952_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		const uint8_t	duty )

Send PWM duty cycle value to apply on a PCA9952 channel.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	chan	- channel number
[in]	duty	- Duty cycle coded on a uint8_t

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9952_PutVals()

FctERR PCA9952_PutVals	(	PCA9952_t *const	pCpnt,
		const uint8_t	pDuty[],
		const bool	indexed,
		const PCA9xxx_chan	start,
		const PCA9xxx_chan	end )

Send PWM duty cycle array of values to apply on a PCA9952.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	pDuty	- Pointer to duty cycle values
[in]	indexed	- if set to true, pDuty start address will be indexed by the value of start parameter (thus pDuty always needs first channels cells even if not sent)
[in]	start	- starting channel number
[in]	end	- ending channel number

Returns: FctERR - ErrorCode

Here is the call graph for this function:

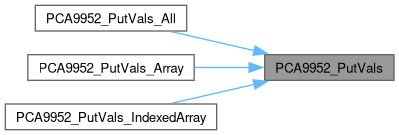

Here is the caller graph for this function:

◆ PCA9952_PutVals_All()

FctERR PCA9952_PutVals_All	(	PCA9952_t *const	pCpnt,
		const uint8_t	pDuty[24] )

inline

Send all PWM duty cycle array of values to apply on a PCA9952 (for the 24 channels)

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	pDuty	- Pointer to duty cycle values (24 bytes)

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9952_PutVals_Array()

FctERR PCA9952_PutVals_Array	(	PCA9952_t *const	pCpnt,
		const uint8_t	pDuty[],
		const PCA9xxx_chan	start,
		const PCA9xxx_chan	end )

inline

Send PWM duty cycle array of values to apply on a PCA9952.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	pDuty	- Pointer to duty cycle values
[in]	start	- starting channel number
[in]	end	- ending channel number

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9952_PutVals_IndexedArray()

FctERR PCA9952_PutVals_IndexedArray	(	PCA9952_t *const	pCpnt,
		const uint8_t	pDuty[],
		const PCA9xxx_chan	start,
		const PCA9xxx_chan	end )

inline

Send PWM duty cycle array of values to apply on a PCA9952.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	pDuty	- Pointer to duty cycle values (pDuty start address will be indexed by the value of start parameter, thus needs first channels cells)
[in]	start	- starting channel number
[in]	end	- ending channel number

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9952_ReadEFLAGs()

FctERR PCA9952_ReadEFLAGs	(	PCA9952_t *const	pCpnt,
		uPCA9952_REG__EFLAG *const	eflags )

Read LEDs error flags.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in,out]	eflags	- Pointer to the error flags data for receive

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9952_ReadRegister()

FctERR PCA9952_ReadRegister	(	PCA9952_t *const	pCpnt,
		const PCA9952_reg	reg,
		uint8_t *	val )

Read register from PCA9952.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	reg	- Register address to read from
[in,out]	val	- Pointer to the data for receive

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9952_ReadVal()

FctERR PCA9952_ReadVal	(	PCA9952_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		uint8_t *const	pDuty )

Read PWM duty cycle value of a PCA9952 channel.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	chan	- channel number
[in,out]	pDuty	- Pointer to duty cycle data

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9952_ReadVals()

FctERR PCA9952_ReadVals	(	PCA9952_t *const	pCpnt,
		uint8_t	pDuty[],
		const bool	indexed,
		const PCA9xxx_chan	start,
		const PCA9xxx_chan	end )

Read PWM duty cycle array of values of a PCA9952.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in,out]	pDuty	- Pointer to duty cycle values
[in]	indexed	- if set to true, pDuty start address will be indexed by the value of start parameter (thus pDuty always needs first channels cells even if not sent)
[in]	start	- starting channel number
[in]	end	- ending channel number

Returns: FctERR - ErrorCode

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PCA9952_ReadVals_All()

FctERR PCA9952_ReadVals_All	(	PCA9952_t *const	pCpnt,
		uint8_t	pDuty[24] )

inline

Read all PWM duty cycle array of values of a PCA9952 (for the 24 channels)

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in,out]	pDuty	- Pointer to duty cycle values (24 bytes)

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9952_ReadVals_Array()

FctERR PCA9952_ReadVals_Array	(	PCA9952_t *const	pCpnt,
		uint8_t	pDuty[],
		const PCA9xxx_chan	start,
		const PCA9xxx_chan	end )

inline

Read PWM duty cycle array of values of a PCA9952.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in,out]	pDuty	- Pointer to duty cycle values
[in]	start	- starting channel number
[in]	end	- ending channel number

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9952_ReadVals_IndexedArray()

FctERR PCA9952_ReadVals_IndexedArray	(	PCA9952_t *const	pCpnt,
		uint8_t	pDuty[],
		const PCA9xxx_chan	start,
		const PCA9xxx_chan	end )

inline

Read PWM duty cycle array of values of a PCA9952.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in,out]	pDuty	- Pointer to duty cycle values (pDuty start address will be indexed by the value of start parameter, thus needs first channels cells)
[in]	start	- starting channel number
[in]	end	- ending channel number

Returns: FctERR - ErrorCode

Here is the call graph for this function:

◆ PCA9952_RST_GPIO_Init()

void PCA9952_RST_GPIO_Init	(	PCA9952_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Reset GPIO pin init for PCA9952.

Weak Functions: PCA9952 Reset GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	GPIOx	- RST port
[in]	GPIO_Pin	- RST pin
[in]	GPIO_Active	RST pin active state

Here is the call graph for this function:

◆ PCA9952_RST_GPIO_Set()

void PCA9952_RST_GPIO_Set	(	PCA9952_t *const	pCpnt,
		const bool	state )

Reset GPIO pin setter for PCA9952.

Weak Functions: PCA9952 Reset GPIO pin setter may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	state	- state to write on RST pin (0: inactive, 1: active)

Here is the call graph for this function:

◆ PCA9952_Set_Auto_Increment()

FctERR PCA9952_Set_Auto_Increment	(	PCA9952_t *const	pCpnt,
		const PCA962x_reg_inc	inc )

Set auto increment option for PCA9952 registers.

Parameters

[in,out]	pCpnt	- Pointer to PCA9952 component
[in]	inc	- auto increment option

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PCA9952_Set_IREF()

FctERR PCA9952_Set_IREF	(	PCA9952_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		const uint8_t	iref )

Set PCA9952 output gain control value.

Parameters

[in,out]	pCpnt	- Pointer to PCA9952 component
[in]	chan	- PCA9952 channel
[in]	iref	- output gain control value

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PCA9952_Set_IREFs()

FctERR PCA9952_Set_IREFs	(	PCA9952_t *const	pCpnt,
		const uint16_t	chans,
		const uint8_t	iref )

Set PCA9952 output gain control value.

Parameters

[in,out]	pCpnt	- Pointer to PCA9952 component
[in]	chans	- PCA9952 channels mask (masked channels will be affected to new mode, other ones remaining unchanged)
[in]	iref	- output gain control value

Returns: FctERR - error code

Here is the call graph for this function:

◆ PCA9952_Set_Latch()

FctERR PCA9952_Set_Latch	(	PCA9952_t *const	pCpnt,
		const PCA96xx_latch	latch )

Set latch type for PCA9952 peripheral.

Parameters

[in,out]	pCpnt	- Pointer to PCA9952 component
[in]	latch	- Latch type

Returns: FctERR - error code

Here is the call graph for this function:

◆ PCA9952_Set_MODE1()

FctERR PCA9952_Set_MODE1	(	PCA9952_t *const	pCpnt,
		const uPCA9952_REG__MODE1	MODE1 )

inline

Set MODE1 register.

Parameters

[in,out]	pCpnt	- Pointer to PCA9952 component
[in]	MODE1	- MODE1 register value

Returns: FctERR - error code

Here is the call graph for this function:

◆ PCA9952_Set_MODE2()

FctERR PCA9952_Set_MODE2	(	PCA9952_t *const	pCpnt,
		uPCA9952_REG__MODE2	MODE2 )

inline

Set MODE2 register.

Parameters

[in,out]	pCpnt	- Pointer to PCA9952 component
[in]	MODE2	- MODE2 register value

Returns: FctERR - error code

Here is the call graph for this function:

◆ PCA9952_Set_Mode_LED()

FctERR PCA9952_Set_Mode_LED	(	PCA9952_t *const	pCpnt,
		const PCA9xxx_chan	chan,
		const PCA995x_ledout	mode )

Set PCA9952 peripheral LED mode.

Parameters

[in,out]	pCpnt	- Pointer to PCA9952 component
[in]	chan	- PCA9952 channel
[in]	mode	- channel mode (on/off/dimming/blinking)

Returns: FctERR - error code

Here is the call graph for this function:

◆ PCA9952_Set_Mode_LEDs()

FctERR PCA9952_Set_Mode_LEDs	(	PCA9952_t *const	pCpnt,
		const uint16_t	chans,
		const PCA995x_ledout	mode )

Set PCA9952 peripheral multiple LEDs mode.

Parameters

[in,out]	pCpnt	- Pointer to PCA9952 component
[in]	chans	- PCA9952 channels mask (masked channels will be affected to new mode, other ones remaining unchanged)
[in]	mode	- channel mode (on/off/dimming/blinking)

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PCA9952_Set_Offset()

FctERR PCA9952_Set_Offset	(	PCA9952_t *const	pCpnt,
		const PCA9952_offset	offset )

Set PCA9952 peripheral delay between channels.

Parameters

[in,out]	pCpnt	- Pointer to PCA9952 component
[in]	offset	- delay between channels

Returns: FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ PCA9952_SetVal()

FctERR PCA9952_SetVal	(	PCA9952_t *const	pCpnt,
		const PCA9xxx_chan	chan )

Send PWM Full ON value to apply on a PCA9952 channel.

Parameters

[in]	pCpnt	- Pointer to PCA9952 component
[in]	chan	- channel number

Returns: FctERR - ErrorCode

Here is the call graph for this function:

Functions

Detailed Description

Function Documentation

◆ PCA9952_ClrVal()

◆ PCA9952_OE_GPIO_Init()

◆ PCA9952_OE_GPIO_Set()

◆ PCA9952_PutVal()

◆ PCA9952_PutVals()

◆ PCA9952_PutVals_All()

◆ PCA9952_PutVals_Array()

◆ PCA9952_PutVals_IndexedArray()

◆ PCA9952_ReadEFLAGs()

◆ PCA9952_ReadRegister()

◆ PCA9952_ReadVal()

◆ PCA9952_ReadVals()

◆ PCA9952_ReadVals_All()

◆ PCA9952_ReadVals_Array()

◆ PCA9952_ReadVals_IndexedArray()

◆ PCA9952_RST_GPIO_Init()

◆ PCA9952_RST_GPIO_Set()

◆ PCA9952_Set_Auto_Increment()

◆ PCA9952_Set_IREF()

◆ PCA9952_Set_IREFs()

◆ PCA9952_Set_Latch()

◆ PCA9952_Set_MODE1()

◆ PCA9952_Set_MODE2()

◆ PCA9952_Set_Mode_LED()

◆ PCA9952_Set_Mode_LEDs()

◆ PCA9952_Set_Offset()

◆ PCA9952_SetVal()
