PCA9956.h File Reference

PCA9956 Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "PCA9xxx.h"
#include "PCA9956_proc.h"
#include "PCA9956_ex.h"

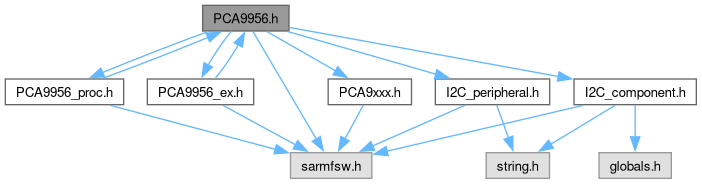

Include dependency graph for PCA9956.h:

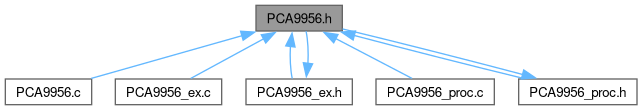

This graph shows which files directly or indirectly include this file:

Data Structures
union	uPCA9956_REG__MODE1
	Union for MODE1 register of PCA9956. More...
union	uPCA9956_REG__MODE2
	Union for MODE2 register of PCA9956. More...
union	uPCA9956_REG__LEDOUT
	Union for LEDOUT registers of PCA9956. More...
union	uPCA9956_REG__EFLAG
	Union for EFLAG registers of PCA9956. More...

Macros
#define	I2C_PCA9956_NB   1U
	Number of PCA9956 peripherals.
#define	PCA9956_BASE_ADDR   0x01U
	PCA9956 Base Address.

Enumerations
enum	PCA9956_reg {   PCA9956__MODE1 = 0U , PCA9956__MODE2 , PCA9956__LEDOUT0 , PCA9956__LEDOUT1 ,   PCA9956__LEDOUT2 , PCA9956__LEDOUT3 , PCA9956__LEDOUT4 , PCA9956__LEDOUT5 ,   PCA9956__GRPPWM , PCA9956__GRPFREQ , PCA9956__PWM0 , PCA9956__PWM1 ,   PCA9956__PWM2 , PCA9956__PWM3 , PCA9956__PWM4 , PCA9956__PWM5 ,   PCA9956__PWM6 , PCA9956__PWM7 , PCA9956__PWM8 , PCA9956__PWM9 ,   PCA9956__PWM10 , PCA9956__PWM11 , PCA9956__PWM12 , PCA9956__PWM13 ,   PCA9956__PWM14 , PCA9956__PWM15 , PCA9956__PWM16 , PCA9956__PWM17 ,   PCA9956__PWM18 , PCA9956__PWM19 , PCA9956__PWM20 , PCA9956__PWM21 ,   PCA9956__PWM22 , PCA9956__PWM23 , PCA9956__IREF0 , PCA9956__IREF1 ,   PCA9956__IREF2 , PCA9956__IREF3 , PCA9956__IREF4 , PCA9956__IREF5 ,   PCA9956__IREF6 , PCA9956__IREF7 , PCA9956__IREF8 , PCA9956__IREF9 ,   PCA9956__IREF10 , PCA9956__IREF11 , PCA9956__IREF12 , PCA9956__IREF13 ,   PCA9956__IREF14 , PCA9956__IREF15 , PCA9956__IREF16 , PCA9956__IREF17 ,   PCA9956__IREF18 , PCA9956__IREF19 , PCA9956__IREF20 , PCA9956__IREF21 ,   PCA9956__IREF22 , PCA9956__IREF23 , PCA9956__OFFSET , PCA9956__SUBADR1 ,   PCA9956__SUBADR2 , PCA9956__SUBADR3 , PCA9956__ALLCALLADR , PCA9956__PWMALL ,   PCA9956__IREFALL , PCA9956__EFLAG0 , PCA9956__EFLAG1 , PCA9956__EFLAG2 ,   PCA9956__EFLAG3 , PCA9956__EFLAG4 , PCA9956__EFLAG5 }
	Register map enum of PCA9956. More...
enum	PCA9956_offset {   PCA9956__OFFSET_NONE = 0U , PCA9956__OFFSET_1_CLOCK_CYCLE , PCA9956__OFFSET_2_CLOCK_CYCLE , PCA9956__OFFSET_3_CLOCK_CYCLE ,   PCA9956__OFFSET_4_CLOCK_CYCLE , PCA9956__OFFSET_5_CLOCK_CYCLE , PCA9956__OFFSET_6_CLOCK_CYCLE , PCA9956__OFFSET_7_CLOCK_CYCLE ,   PCA9956__OFFSET_8_CLOCK_CYCLE , PCA9956__OFFSET_9_CLOCK_CYCLE , PCA9956__OFFSET_10_CLOCK_CYCLE , PCA9956__OFFSET_11_CLOCK_CYCLE }
	Offset enum for PCA9956 peripheral. More...

Functions
FctERR	PCA9956_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress)
	Initialization for PCA9956 peripheral.
FctERR	PCA9956_Init_Single (void)
	Initialization for PCA9956 peripheral.
FctERR	PCA9956_Write (I2C_slave_t *const pSlave, const uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Write function for PCA9956.
FctERR	PCA9956_Read (I2C_slave_t *const pSlave, uint8_t *data, const uint16_t addr, const uint16_t nb)
	I2C Read function for PCA9956.

Detailed Description

PCA9956 Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

PCA9956: 24-channel Fm+ I2C-bus 57 mA/20 V constant current LED driver

Macro Definition Documentation

I2C_PCA9956_NB

#define I2C_PCA9956_NB   1U

Number of PCA9956 peripherals.

Note

Define I2C_PCA9956_NB to enable multiple peripherals of this type

PCA9956_BASE_ADDR

#define PCA9956_BASE_ADDR   0x01U

PCA9956 Base Address.

Note

Define PCA9956_BASE_ADDR to change default device base address

Enumeration Type Documentation

PCA9956_offset

enum PCA9956_offset

Offset enum for PCA9956 peripheral.

Enumerator
PCA9956__OFFSET_NONE	no delay between outputs (all on, all off at the same time)
PCA9956__OFFSET_1_CLOCK_CYCLE	delay of 1 clock cycle (125 ns) between successive outputs
PCA9956__OFFSET_2_CLOCK_CYCLE	delay of 2 clock cycle (250 ns) between successive outputs
PCA9956__OFFSET_3_CLOCK_CYCLE	delay of 3 clock cycle (375 ns) between successive outputs
PCA9956__OFFSET_4_CLOCK_CYCLE	delay of 4 clock cycle (500 ns) between successive outputs
PCA9956__OFFSET_5_CLOCK_CYCLE	delay of 5 clock cycle (625 ns) between successive outputs
PCA9956__OFFSET_6_CLOCK_CYCLE	delay of 6 clock cycle (750 ns) between successive outputs
PCA9956__OFFSET_7_CLOCK_CYCLE	delay of 7 clock cycle (875 ns) between successive outputs
PCA9956__OFFSET_8_CLOCK_CYCLE	delay of 8 clock cycle (1 us) between successive outputs
PCA9956__OFFSET_9_CLOCK_CYCLE	delay of 9 clock cycle (1.125 us) between successive outputs
PCA9956__OFFSET_10_CLOCK_CYCLE	delay of 10 clock cycle (1.25 us) between successive outputs
PCA9956__OFFSET_11_CLOCK_CYCLE	delay of 11 clock cycle (1.375 us) between successive outputs

PCA9956_reg

enum PCA9956_reg

Register map enum of PCA9956.

Enumerator
PCA9956__MODE1	register MODE1
PCA9956__MODE2	register MODE2
PCA9956__LEDOUT0	register LED output state 0
PCA9956__LEDOUT1	register LED output state 1
PCA9956__LEDOUT2	register LED output state 2
PCA9956__LEDOUT3	register LED output state 3
PCA9956__LEDOUT4	register LED output state 4
PCA9956__LEDOUT5	register LED output state 5
PCA9956__GRPPWM	register group duty cycle control
PCA9956__GRPFREQ	register group frequency
PCA9956__PWM0	register brightness control LED0
PCA9956__PWM1	register brightness control LED1
PCA9956__PWM2	register brightness control LED2
PCA9956__PWM3	register brightness control LED3
PCA9956__PWM4	register brightness control LED4
PCA9956__PWM5	register brightness control LED5
PCA9956__PWM6	register brightness control LED6
PCA9956__PWM7	register brightness control LED7
PCA9956__PWM8	register brightness control LED8
PCA9956__PWM9	register brightness control LED9
PCA9956__PWM10	register brightness control LED10
PCA9956__PWM11	register brightness control LED11
PCA9956__PWM12	register brightness control LED12
PCA9956__PWM13	register brightness control LED13
PCA9956__PWM14	register brightness control LED14
PCA9956__PWM15	register brightness control LED15
PCA9956__PWM16	register brightness control LED16
PCA9956__PWM17	register brightness control LED17
PCA9956__PWM18	register brightness control LED18
PCA9956__PWM19	register brightness control LED19
PCA9956__PWM20	register brightness control LED20
PCA9956__PWM21	register brightness control LED21
PCA9956__PWM22	register brightness control LED22
PCA9956__PWM23	register brightness control LED23
PCA9956__IREF0	register output gain control 0
PCA9956__IREF1	register output gain control 1
PCA9956__IREF2	register output gain control 2
PCA9956__IREF3	register output gain control 3
PCA9956__IREF4	register output gain control 4
PCA9956__IREF5	register output gain control 5
PCA9956__IREF6	register output gain control 6
PCA9956__IREF7	register output gain control 7
PCA9956__IREF8	register output gain control 8
PCA9956__IREF9	register output gain control 9
PCA9956__IREF10	register output gain control 10
PCA9956__IREF11	register output gain control 11
PCA9956__IREF12	register output gain control 12
PCA9956__IREF13	register output gain control 13
PCA9956__IREF14	register output gain control 14
PCA9956__IREF15	register output gain control 15
PCA9956__IREF16	register output gain control 16
PCA9956__IREF17	register output gain control 17
PCA9956__IREF18	register output gain control 18
PCA9956__IREF19	register output gain control 19
PCA9956__IREF20	register output gain control 20
PCA9956__IREF21	register output gain control 21
PCA9956__IREF22	register output gain control 22
PCA9956__IREF23	register output gain control 23
PCA9956__OFFSET	register offset / delay on LEDn outputs
PCA9956__SUBADR1	register SUBADR1
PCA9956__SUBADR2	register SUBADR2
PCA9956__SUBADR3	register SUBADR3
PCA9956__ALLCALLADR	register ALLCALLADR
PCA9956__PWMALL	register brightness control for all LEDn
PCA9956__IREFALL	register output gain control for all IREF0 to IREF23
PCA9956__EFLAG0	register output error flag 0
PCA9956__EFLAG1	register output error flag 1
PCA9956__EFLAG2	register output error flag 2
PCA9956__EFLAG3	register output error flag 3
PCA9956__EFLAG4	register output error flag 4
PCA9956__EFLAG5	register output error flag 5

Function Documentation

PCA9956_Init()

FctERR PCA9956_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress )

Initialization for PCA9956 peripheral.

Parameters

[in]	idx	- PCA9956 index
[in]	hi2c	- pointer to PCA9956 I2C instance
[in]	devAddress	- PCA9956 device address

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

PCA9956_Init_Single()

FctERR PCA9956_Init_Single

(

void

)

Initialization for PCA9956 peripheral.

Warning

In case multiple devices (defined by I2C_PCA9956_NB > 1), you shall use PCA9956_Init instead

Returns

FctERR - error code

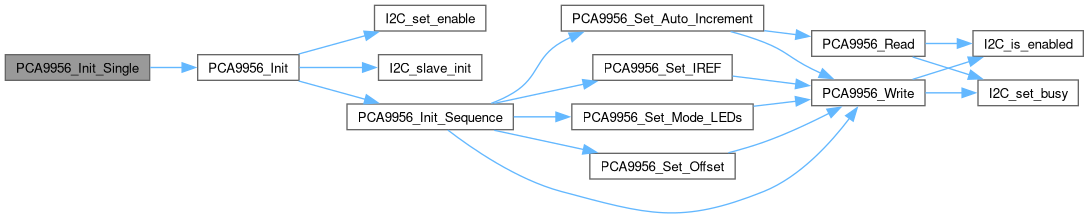

Here is the call graph for this function:

PCA9956_Read()

FctERR PCA9956_Read	(	I2C_slave_t *const	pSlave,
		uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for PCA9956.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in,out]	data	- pointer to read to
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the call graph for this function:

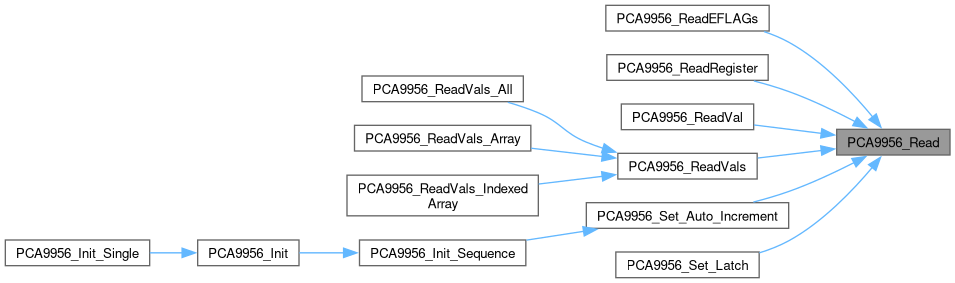

Here is the caller graph for this function:

PCA9956_Write()

FctERR PCA9956_Write	(	I2C_slave_t *const	pSlave,
		const uint8_t *	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for PCA9956.

Parameters

[in,out]	pSlave	- Pointer to I2C slave instance
[in]	data	- pointer to write from
[in]	addr	- Address to write to
[in]	nb	- Number of bytes to write

Returns

FctERR - error code

Here is the call graph for this function:

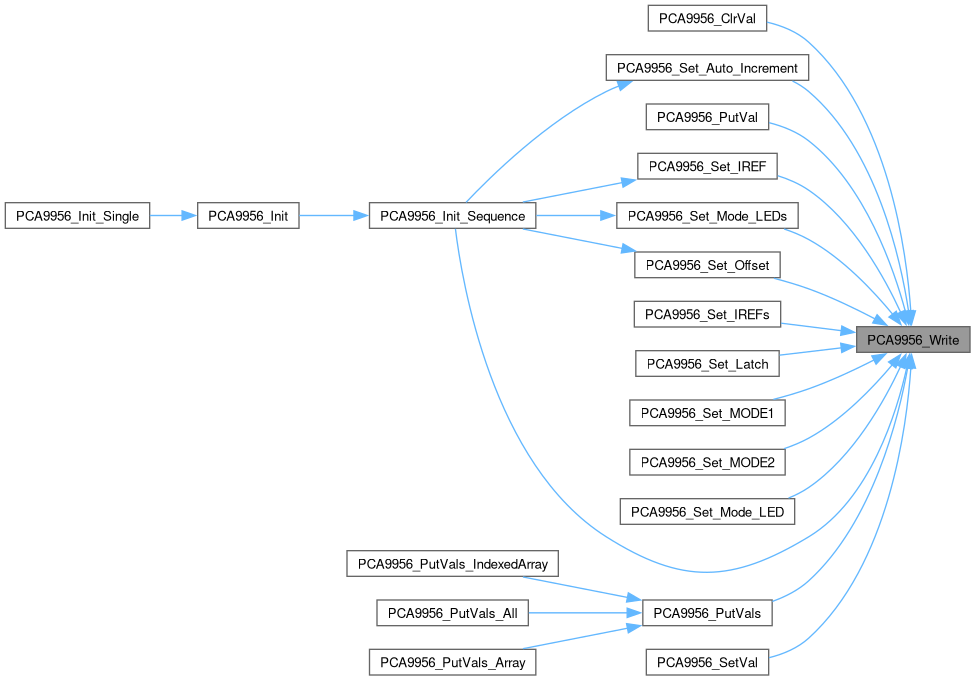

Here is the caller graph for this function:
