I2C_peripheral.c File Reference

I2C peripheral common. More...

#include "I2C_peripheral.h"

Include dependency graph for I2C_peripheral.c:

Functions
void	I2C_peripheral_GPIO_init (PeripheralGPIO_t *const pGPIO, GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	I2C peripheral GPIO pin init.
bool	I2C_peripheral_GPIO_get (const PeripheralGPIO_t *const pGPIO)
	I2C peripheral GPIO pin getter.
void	I2C_peripheral_GPIO_set (const PeripheralGPIO_t *const pGPIO, const bool state)
	I2C peripheral GPIO pin setter.

Detailed Description

I2C peripheral common.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

Function Documentation

I2C_peripheral_GPIO_get()

bool I2C_peripheral_GPIO_get

(

const PeripheralGPIO_t *const

pGPIO

)

I2C peripheral GPIO pin getter.

Parameters

[in]

pGPIO

- Pointer to GPIO structure instance

Returns

GPIO state value (0: inactive, 1: active)

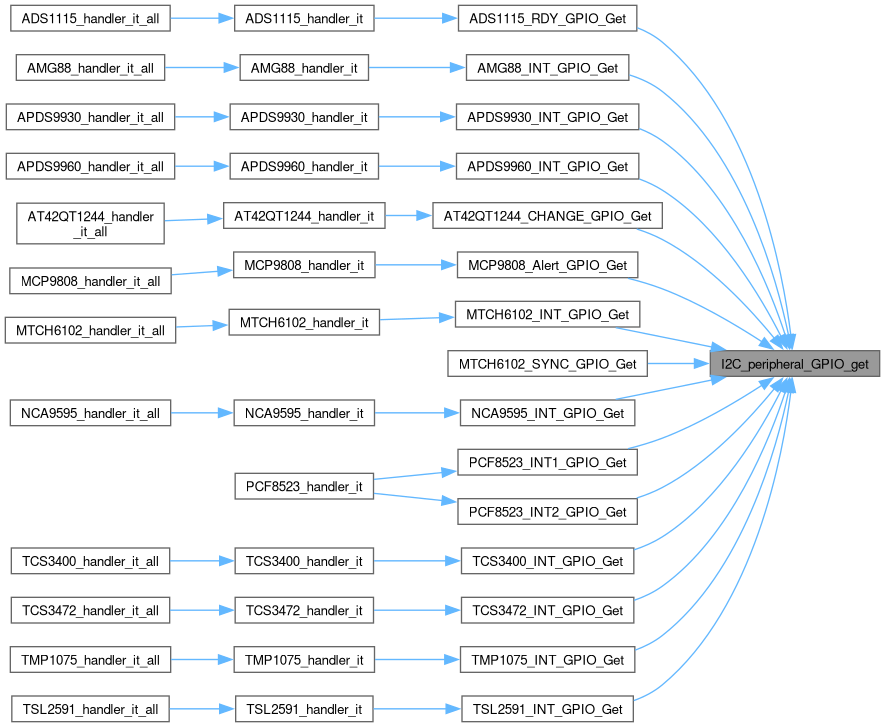

Here is the caller graph for this function:

I2C_peripheral_GPIO_init()

void I2C_peripheral_GPIO_init	(	PeripheralGPIO_t *const	pGPIO,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

I2C peripheral GPIO pin init.

Parameters

[in,out]	pGPIO	- Pointer to GPIO structure instance
[in]	GPIOx	- GPIO port
[in]	GPIO_Pin	- GPIO pin
[in]	GPIO_Active	GPIO pin active state

Here is the caller graph for this function:

I2C_peripheral_GPIO_set()

void I2C_peripheral_GPIO_set	(	const PeripheralGPIO_t *const	pGPIO,
		const bool	state )

I2C peripheral GPIO pin setter.

Parameters

[in]	pGPIO	- Pointer to GPIO structure instance
[in]	state	- state to write on GPIO (0: inactive, 1: active)

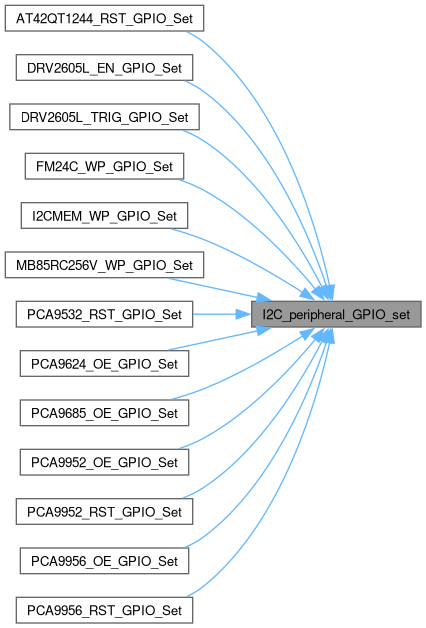

Here is the caller graph for this function:
