I2CMEM.h File Reference

FRAM / EEPROM Driver. More...

#include "sarmfsw.h"
#include "I2C_component.h"
#include "I2C_peripheral.h"
#include "I2CMEM_ex.h"

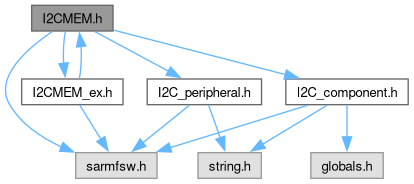

Include dependency graph for I2CMEM.h:

This graph shows which files directly or indirectly include this file:

Data Structures
struct	I2CMEM_t
	I2CMEM user interface struct. More...

Macros
#define	I2C_I2CMEM_NB   1U
	Number of I2CMEM peripherals.
#define	I2CMEM_BASE_ADDR   0x50U
	I2CMEM Base address.
#define	I2CMEM_BANK_SIZE   0x100U
	I2CMEM bank size (in bytes) for <=16Kb devices.

Functions
FctERR	I2CMEM_Init (const uint8_t idx, I2C_HandleTypeDef *const hi2c, const uint16_t devAddress, const size_t size, const size_t buf_size)
	Initialization for I2CMEM peripheral.
FctERR	I2CMEM_Init_Single (const size_t size, const size_t buf_size)
	Initialization for I2CMEM peripheral.
FctERR	I2CMEM_Write (I2CMEM_t *const pCpnt, const uint8_t *const data, const uint16_t addr, const uint16_t nb)
	I2C Write function for I2CMEM.
FctERR	I2CMEM_Read (I2CMEM_t *const pCpnt, uint8_t *const data, const uint16_t addr, const uint16_t nb)
	I2C Read function for I2CMEM.

Variables
I2CMEM_t	I2CMEM [I2C_I2CMEM_NB]
	I2CMEM User structure.

Detailed Description

FRAM / EEPROM Driver.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

Note

Fully compatible between EEPROM / FRAM type components

When EEPROM compatibility is not needed, buf_size at init can be set to I2CMEM_WBUF_NONE for more efficiency

Macro Definition Documentation

I2C_I2CMEM_NB

#define I2C_I2CMEM_NB   1U

Number of I2CMEM peripherals.

Note

Define I2C_I2CMEM_NB to enable multiple peripherals of this type

I2CMEM_BANK_SIZE

#define I2CMEM_BANK_SIZE   0x100U

I2CMEM bank size (in bytes) for <=16Kb devices.

I2CMEM_BASE_ADDR

#define I2CMEM_BASE_ADDR   0x50U

I2CMEM Base address.

Note

Define I2CMEM_BASE_ADDR to change default device base address

Function Documentation

I2CMEM_Init()

FctERR I2CMEM_Init	(	const uint8_t	idx,
		I2C_HandleTypeDef *const	hi2c,
		const uint16_t	devAddress,
		const size_t	size,
		const size_t	buf_size )

Initialization for I2CMEM peripheral.

Parameters

[in]	idx	- I2CMEM index
[in]	hi2c	- pointer to I2CMEM I2C instance
[in]	devAddress	- I2CMEM device address
[in]	size	- I2CMEM device size
[in]	buf_size	- I2CMEM device write buffer size (typically I2CMEM_WBUF_NONE for FRAM component)

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

I2CMEM_Init_Single()

FctERR I2CMEM_Init_Single	(	const size_t	size,
		const size_t	buf_size )

Initialization for I2CMEM peripheral.

Warning

In case multiple devices (defined by I2C_I2CMEM_NB > 1), you shall use I2CMEM_Init instead

Parameters

[in]	size	- I2CMEM device size
[in]	buf_size	- I2CMEM device write buffer size (typically I2CMEM_WBUF_NONE for FRAM component)

Returns

FctERR - error code

Here is the call graph for this function:

I2CMEM_Read()

FctERR I2CMEM_Read	(	I2CMEM_t *const	pCpnt,
		uint8_t *const	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Read function for I2CMEM.

Parameters

[in]	pCpnt	- Pointer to I2CMEM component
[in,out]	data	- pointer to read/write to/from
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

I2CMEM_Write()

FctERR I2CMEM_Write	(	I2CMEM_t *const	pCpnt,
		const uint8_t *const	data,
		const uint16_t	addr,
		const uint16_t	nb )

I2C Write function for I2CMEM.

Parameters

[in]	pCpnt	- Pointer to I2CMEM component
[in,out]	data	- pointer to read/write to/from
[in]	addr	- Address to read from
[in]	nb	- Number of bytes to read

Returns

FctERR - error code

Here is the caller graph for this function:

Variable Documentation

I2CMEM

I2CMEM_t I2CMEM[I2C_I2CMEM_NB]

extern

I2CMEM User structure.
