PCA9624_proc.h File Reference

PCA9624 Driver procedures. More...

#include "sarmfsw.h"
#include "PCA9624.h"

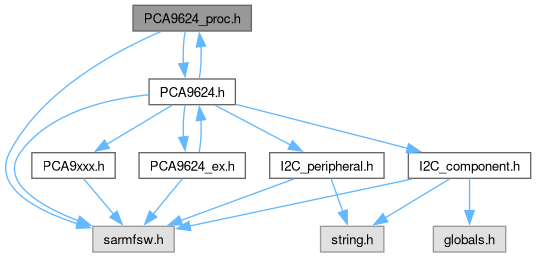

Include dependency graph for PCA9624_proc.h:

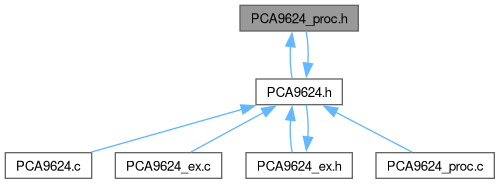

This graph shows which files directly or indirectly include this file:

Data Structures
struct	PCA9624_t
	PCA9624 user interface struct. More...

Macros
#define	PCA9624_NB_CHANNELS   8U
	PCA9624 Number of channels.

Functions
FctERR	PCA9624_Init_Sequence (PCA9624_t *const pCpnt)
	Initialization Sequence for PCA9624 peripheral.

Variables
PCA9624_t	PCA9624 [I2C_PCA9624_NB]
	PCA9624 User structure.

Detailed Description

PCA9624 Driver procedures.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

PCA9624: 8-bit Fm+ I2C-bus 100mA 40V LED driver

Macro Definition Documentation

PCA9624_NB_CHANNELS

#define PCA9624_NB_CHANNELS   8U

PCA9624 Number of channels.

Function Documentation

PCA9624_Init_Sequence()

FctERR PCA9624_Init_Sequence

(

PCA9624_t *const

pCpnt

)

Initialization Sequence for PCA9624 peripheral.

Weak Functions

PCA9624 Init sequence may be user implemented if custom initialization sequence needed

Parameters

[in]

pCpnt

- Pointer to PCA9624 component

Returns

FctERR - error code

Here is the call graph for this function:

Here is the caller graph for this function:

Variable Documentation

PCA9624

PCA9624_t PCA9624[I2C_PCA9624_NB]

extern

PCA9624 User structure.
