MB85RC256V_ex.c File Reference

MB85RC256V FRAM Driver extensions. More...

#include "MB85RC256V.h"

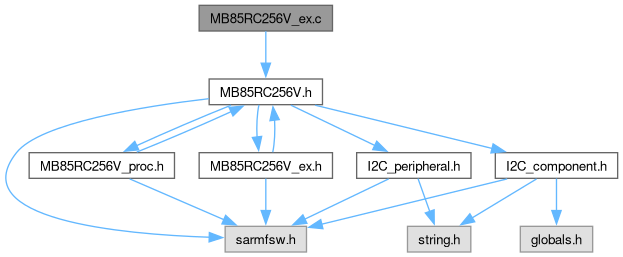

Include dependency graph for MB85RC256V_ex.c:

Functions
FctERR	MB85RC256V_Mass_Erase (MB85RC256V_t *const pCpnt)
	Mass erase of MB85RC256V.
void	MB85RC256V_WP_GPIO_Init (MB85RC256V_t *const pCpnt, GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const GPIO_PinState GPIO_Active)
	Write Protect GPIO pin init for MB85RC256V.
void	MB85RC256V_WP_GPIO_Set (MB85RC256V_t *const pCpnt, const bool state)

Detailed Description

MB85RC256V FRAM Driver extensions.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

MB85RC256V: 256-Kbit (32K * 8) I2C Memory FRAM

Note

Compatibility (tested):

• MB85RC256V
• MB85RC256VL64B

Function Documentation

MB85RC256V_Mass_Erase()

FctERR MB85RC256V_Mass_Erase

(

MB85RC256V_t *const

pCpnt

)

Mass erase of MB85RC256V.

Parameters

[in]

pCpnt

- Pointer to MB85RC256V component

Returns

FctERR - error code

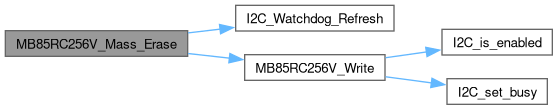

Here is the call graph for this function:

MB85RC256V_WP_GPIO_Init()

void MB85RC256V_WP_GPIO_Init	(	MB85RC256V_t *const	pCpnt,
		GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const GPIO_PinState	GPIO_Active )

Write Protect GPIO pin init for MB85RC256V.

Weak Functions

MB85RC256V Write Protect GPIO pin init may be user implemented if needed

Parameters

[in]	pCpnt	- Pointer to MB85RC256V component
[in]	GPIOx	- WP port
[in]	GPIO_Pin	- WP pin
[in]	GPIO_Active	WP pin active state

Here is the call graph for this function:

MB85RC256V_WP_GPIO_Set()

void MB85RC256V_WP_GPIO_Set	(	MB85RC256V_t *const	pCpnt,
		const bool	state )

Here is the call graph for this function:
