TIM_ex.h File Reference

Extensions for TIM peripherals. More...

#include "sarmfsw.h"

Include dependency graph for TIM_ex.h:

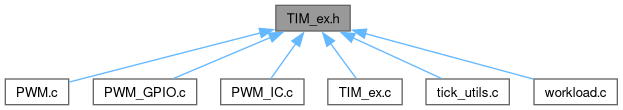

This graph shows which files directly or indirectly include this file:

Functions
uint32_t	RCC_TIMCLKFreq (const TIM_HandleTypeDef *const pTim)
	Get TIM peripheral clock frequency.
HAL_StatusTypeDef	write_TIM_Preload (TIM_HandleTypeDef *const pTim, const uint32_t chan)
	Write preload bit in TIM module for desired channel.
HAL_StatusTypeDef	write_TIM_CCR (const TIM_HandleTypeDef *const pTim, const uint32_t chan, const uint32_t CCR_val)
	Low level TIM module CCR write.
HAL_StatusTypeDef	set_TIM_Interrupts (TIM_HandleTypeDef *const pTim, const bool on)
	Start TIM module interrupts.
HAL_StatusTypeDef	deinit_TIM_Base (TIM_HandleTypeDef *const pTim)
	De-Init TIM base module (stop interruptions)
HAL_StatusTypeDef	init_TIM_Base (TIM_HandleTypeDef *const pTim, const uint32_t freq)
	Init TIM module and start interruptions.
HAL_StatusTypeDef	set_TIM_Freq (TIM_HandleTypeDef *const pTim, const uint32_t freq)
	Set TIM module frequency.
HAL_StatusTypeDef	set_TIM_Tick_Freq (TIM_HandleTypeDef *const pTim, const uint32_t freq)
	Set TIM module tick frequency.

Detailed Description

Extensions for TIM peripherals.

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

Warning

Init functions assume that TIM peripherals instance were already configured by HAL

Shall work for all STM32 F/G/H/L families only (yet)

Note

TIM_MIN_GRANULARITY can defined at project level to tweak to needed minimum granularity

Function Documentation

deinit_TIM_Base()

HAL_StatusTypeDef deinit_TIM_Base ( TIM_HandleTypeDef *const pTim )

inline

De-Init TIM base module (stop interruptions)

Parameters

[in,out]

pTim

- pointer to TIM instance

Returns

HAL Status

Here is the call graph for this function:

init_TIM_Base()

HAL_StatusTypeDef init_TIM_Base	(	TIM_HandleTypeDef *const	pTim,
		const uint32_t	freq )

Init TIM module and start interruptions.

Parameters

[in,out]	pTim	- pointer to TIM instance
[in]	freq	- Desired TIM frequency

Returns

HAL Status

Here is the call graph for this function:

Here is the caller graph for this function:

RCC_TIMCLKFreq()

uint32_t RCC_TIMCLKFreq

(

const TIM_HandleTypeDef *const

pTim

)

Get TIM peripheral clock frequency.

Warning

Shall work for all STM32 F/G families, L families not totally covered

Parameters

[in,out]

pTim

- pointer to TIM instance

Returns

TIM peripheral clock frequency (Hz)

Note

TIM_MIN_GRANULARITY can defined at project level to tweak to needed minimum granularity

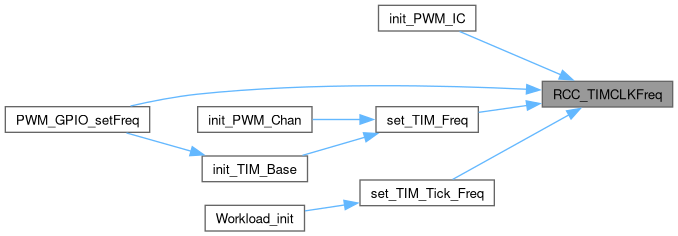

Here is the caller graph for this function:

set_TIM_Freq()

HAL_StatusTypeDef set_TIM_Freq	(	TIM_HandleTypeDef *const	pTim,
		const uint32_t	freq )

Set TIM module frequency.

Parameters

[in,out]	pTim	- pointer to TIM instance for Frequency computation
[in]	freq	- Desired TIM frequency

Returns

HAL Status

Here is the call graph for this function:

Here is the caller graph for this function:

set_TIM_Interrupts()

HAL_StatusTypeDef set_TIM_Interrupts ( TIM_HandleTypeDef *const pTim, const bool on )

inline

Start TIM module interrupts.

Parameters

[in,out]	pTim	- pointer to TIM instance
[in]	on	- Time Interrupts 0: off, 1: on

Returns

HAL Status

Here is the caller graph for this function:

set_TIM_Tick_Freq()

HAL_StatusTypeDef set_TIM_Tick_Freq	(	TIM_HandleTypeDef *const	pTim,
		const uint32_t	freq )

Set TIM module tick frequency.

Note

This function sets TIM period to maximum value (which is most likely what is needed in such a configuration case)

Parameters

[in,out]	pTim	- pointer to TIM instance for Frequency computation
[in]	freq	- Desired TIM tick frequency

Returns

HAL Status

Here is the call graph for this function:

Here is the caller graph for this function:

write_TIM_CCR()

HAL_StatusTypeDef write_TIM_CCR	(	const TIM_HandleTypeDef *const	pTim,
		const uint32_t	chan,
		const uint32_t	CCR_val )

Low level TIM module CCR write.

Parameters

[in,out]	pTim	- pointer to TIM instance for PWM generation
[in]	chan	- Channel to write
[in]	CCR_val	- CCR value

Returns

HAL Status

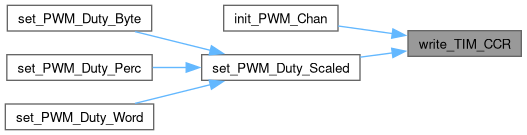

Here is the caller graph for this function:

write_TIM_Preload()

HAL_StatusTypeDef write_TIM_Preload	(	TIM_HandleTypeDef *const	pTim,
		const uint32_t	chan )

Write preload bit in TIM module for desired channel.

Parameters

[in,out]	pTim	- pointer to TIM instance
[in]	chan	- Channel to write

Returns

HAL Status

Here is the caller graph for this function:
