Logic output handling. More...

#include "sarmfsw.h"

Include dependency graph for Logic_out.h:

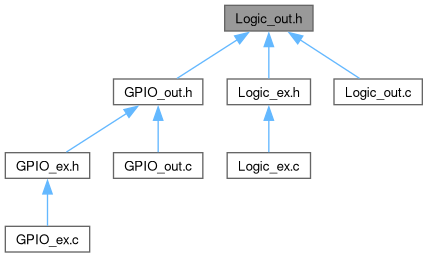

This graph shows which files directly or indirectly include this file:

Data Structures
struct	logic_out

Typedefs
typedef struct logic_out	Logic_out

Enumerations
enum	eLogic_out_mode { outStatic = 0U , outPulse , outBlink }
	Activation state On, Off. More...

Functions
eGPIOState	get_Logic_out_State (const Logic_out *const out)
	Get Logic_out current output value.
eLogic_out_mode	get_Logic_out_Mode (const Logic_out *const out)
	Get Logic_out current mode.
bool	get_Logic_out_Idle (const Logic_out *const out)
	Get Logic_out current status.
FctERR	Logic_out_init (Logic_out const out, void(setter)(const Logic_out const, const GPIO_PinState), uint32_t const addr, const uint16_t pos, const GPIO_PinState polarity)
	Initialize Logic_out instance.
FctERR	Logic_out_Abort (Logic_out *const out)
	Stop Logic_out pulse/blink if running, or abort set if delay not reached.
FctERR	Logic_out_SetStatic (Logic_out *const out, const eGPIOState action, const uint32_t delay)
	Set Logic_out state.
FctERR	Logic_out_Set (Logic_out *const out)
	Set Logic_out.
FctERR	Logic_out_Set_Delayed (Logic_out *const out, const uint32_t delay)
	Set Logic_out.
FctERR	Logic_out_Reset (Logic_out *const out)
	Reset Logic_out.
FctERR	Logic_out_Reset_Delayed (Logic_out *const out, const uint32_t delay)
	Reset Logic_out.
FctERR	Logic_out_StartPulse (Logic_out *const out, const eGPIOState action, const uint32_t delay, const uint32_t active)
	Start Logic_out Pulse.
FctERR	Logic_out_StartBlink (Logic_out *const out, const eGPIOState action, const uint32_t delay, const uint32_t active, const uint32_t inactive, const uint32_t count)
	Start Logic_out Blink.
void	Logic_out_handler (Logic_out *const out)
	Handles Logic_out treatment.

Detailed Description

Logic output handling.

Author: SMFSW

Copyright: MIT (c) 2017-2026, SMFSW

Note: Define LOGIC_OUT_IT symbol at project level to use Logic_out from timer interrupts (for more timing precision if required); When using Logic_out from interrupts, LOGIC_OUT_IT_PER period is defined by default with a period of 1000µs (can be customly defined)

Warning: Logic_out & GPIO_out shares interrupt behavior, thus needs to be implemented the same way (it or loop) if both are used at the same time

Typedef Documentation

◆ Logic_out

typedef struct logic_out Logic_out

Enumeration Type Documentation

◆ eLogic_out_mode

enum eLogic_out_mode

Activation state On, Off.

Enumerator
outStatic	Static mode.
outPulse	Pulse mode (mono-stable).
outBlink	Blink mode (bi-stable).

Function Documentation

◆ get_Logic_out_Idle()

bool get_Logic_out_Idle ( const Logic_out *const out )

inline

Get Logic_out current status.

Parameters

[in] out - Logic_out instance

Returns: Pin status

Here is the caller graph for this function:

◆ get_Logic_out_Mode()

eLogic_out_mode get_Logic_out_Mode ( const Logic_out *const out )

inline

Get Logic_out current mode.

Parameters

[in] out - Logic_out instance

Returns: Pin mode

Here is the caller graph for this function:

◆ get_Logic_out_State()

eGPIOState get_Logic_out_State ( const Logic_out *const out )

inline

Get Logic_out current output value.

Parameters

[in] out - Logic_out instance

Returns: Pin state

Here is the caller graph for this function:

◆ Logic_out_Abort()

FctERR Logic_out_Abort ( Logic_out *const out )

Stop Logic_out pulse/blink if running, or abort set if delay not reached.

Parameters

[in,out] out - Logic_out instance

Returns: FctERR - Error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Logic_out_handler()

void Logic_out_handler ( Logic_out *const out )

Handles Logic_out treatment.

Parameters

[in,out] out - Logic_out instance to handle

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Logic_out_init()

FctERR Logic_out_init	(	Logic_out *const	out,
		void(*	setter )(const Logic_out *const, const GPIO_PinState),
		uint32_t *const	addr,
		const uint16_t	pos,
		const GPIO_PinState	polarity )

Initialize Logic_out instance.

Parameters

[in,out]	out	- Logic_out instance to initialize
[in]	setter	- Logic_out setter function pointer (may be NULL: default behavior for handling RAM variable at address addr)
[in]	addr	- Variable address to write to (pointer to unsigned 32b, may be NULL if setter handles everything)
[in]	pos	- Bit position in variable (may be unused if setter function is used)
[in]	polarity	- set to `GPIO_PIN_RESET` if active state is low, `GPIO_PIN_SET` if high

Returns: FctERR - Error code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Logic_out_Reset()

FctERR Logic_out_Reset ( Logic_out *const out )

inline

Reset Logic_out.

Parameters

[in,out] out - Logic_out instance

Returns: FctERR - Error Code

Here is the call graph for this function:

◆ Logic_out_Reset_Delayed()

FctERR Logic_out_Reset_Delayed	(	Logic_out *const	out,
		const uint32_t	delay )

inline

Reset Logic_out.

Parameters

[in,out]	out	- Logic_out instance
[in]	delay	- delay before writing to port (in ms)

Returns: FctERR - Error Code

Here is the call graph for this function:

◆ Logic_out_Set()

FctERR Logic_out_Set ( Logic_out *const out )

inline

Set Logic_out.

Parameters

[in,out] out - Logic_out instance

Returns: FctERR - Error Code

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Logic_out_Set_Delayed()

FctERR Logic_out_Set_Delayed	(	Logic_out *const	out,
		const uint32_t	delay )

inline

Set Logic_out.

Parameters

[in,out]	out	- Logic_out instance
[in]	delay	- delay before writing to port (in ms)

Returns: FctERR - Error Code

Here is the call graph for this function:

◆ Logic_out_SetStatic()

FctERR Logic_out_SetStatic	(	Logic_out *const	out,
		const eGPIOState	action,
		const uint32_t	delay )

Set Logic_out state.

Parameters

[in,out]	out	- Logic_out instance
[in]	action	- action to perform on output port pin (Reset/Set/Toggle)
[in]	delay	- delay before writing to port (in ms)

Returns: FctERR - Error code

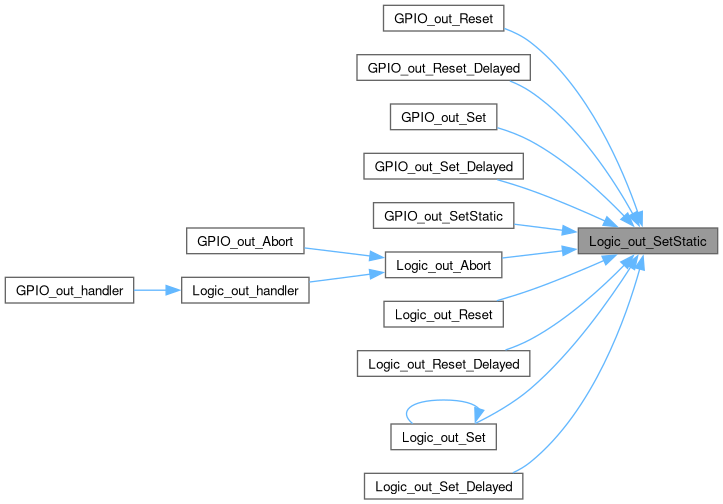

Here is the caller graph for this function:

◆ Logic_out_StartBlink()

FctERR Logic_out_StartBlink	(	Logic_out *const	out,
		const eGPIOState	action,
		const uint32_t	delay,
		const uint32_t	active,
		const uint32_t	inactive,
		const uint32_t	count )

Start Logic_out Blink.

Parameters

[in,out]	out	- Logic_out instance
[in]	action	- action to perform on output port pin for active state (Reset/Set/Toggle)
[in]	delay	- delay before pulse (in ms)
[in]	active	- blink active time (in ms)
[in]	inactive	- blink inactive time (in ms)
[in]	count	- blink count (0 for infinite)

Returns: FctERR - Error code

Here is the caller graph for this function:

◆ Logic_out_StartPulse()

FctERR Logic_out_StartPulse	(	Logic_out *const	out,
		const eGPIOState	action,
		const uint32_t	delay,
		const uint32_t	active )

Start Logic_out Pulse.

Parameters

[in,out]	out	- Logic_out instance
[in]	action	- action to perform on output port pin for active state (Reset/Set/Toggle)
[in]	delay	- delay before pulse (in ms)
[in]	active	- pulse time (in ms)

Returns: FctERR - Error code

Here is the caller graph for this function:
