GPIO_ex.h File Reference

Extensions for GPIOs (R/W) More...

#include "sarmfsw.h"
#include "GPIO_in.h"
#include "GPIO_out.h"

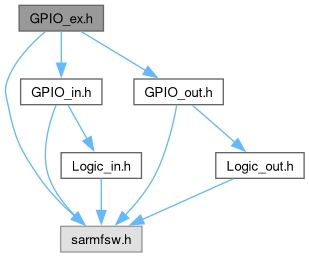

Include dependency graph for GPIO_ex.h:

This graph shows which files directly or indirectly include this file:

Functions
void	write_GPIO (GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin, const eGPIOState action)
	Write GPIO.
GPIO_PinState	read_GPIO (GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin)
	Read GPIO.
void	str_GPIO_name (char *name, const GPIO_TypeDef *const GPIOx, const uint16_t GPIO_Pin)
	Get name from Port, Pin.

Detailed Description

Extensions for GPIOs (R/W)

Author

SMFSW

Copyright

MIT (c) 2017-2026, SMFSW

Function Documentation

read_GPIO()

GPIO_PinState read_GPIO	(	GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin )

Read GPIO.

Parameters

[in]	GPIOx	- port to read from
[in]	GPIO_Pin	- pin to read from

Returns

Pin state

Here is the call graph for this function:

str_GPIO_name()

void str_GPIO_name	(	char *	name,
		const GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin )

Get name from Port, Pin.

Parameters

[in,out]	name	- pointer to string for name
[in]	GPIOx	- port
[in]	GPIO_Pin	- pin

Here is the caller graph for this function:

write_GPIO()

void write_GPIO	(	GPIO_TypeDef *const	GPIOx,
		const uint16_t	GPIO_Pin,
		const eGPIOState	action )

Write GPIO.

Parameters

[in]	GPIOx	- port to write to
[in]	GPIO_Pin	- pin to write to
[in]	action	- action to perform on output port pin

Here is the call graph for this function:
